SMD LED - POWER LED
- Monday, 24 November 2014
- Written by K.Vijay Kumar Gupta
HIGH POWER LED’s from Kwality
*FOR DETAILED DATASHEET CLICK ON THE PRODUCT PART NUMBER.
|
LED PICTURE |
|
|
|
|
|
LED PART NUMBER |
||||
|
POWER Watts |
3Watt |
1Watt |
3Watts |
1Watt |
|
COLORS |
White |
White, Red, Green, Blue |
White, Red, Green, Blue |
White |
|
CURRENT Max |
350mA |
350mA |
700mA |
350mA |
|
VOLTAGE Vf |
3~3.6 Volts |
3-3.3Volts |
3-3.5 Volts |
3~3.3Volts |
|
LUMENS |
140 Lumens |
100/130Lumens |
210/240 Lumens |
110Lm |
|
SIZE OUTER & GLOW mm |
3.45x3.45 mm & Dia 1.4mm |
7.26(L) x14.6(W) x5.3(H) mm & Dia 8mm |
7.26(L) x14.6(W) x5.3(H) mm & Dia 8mm |

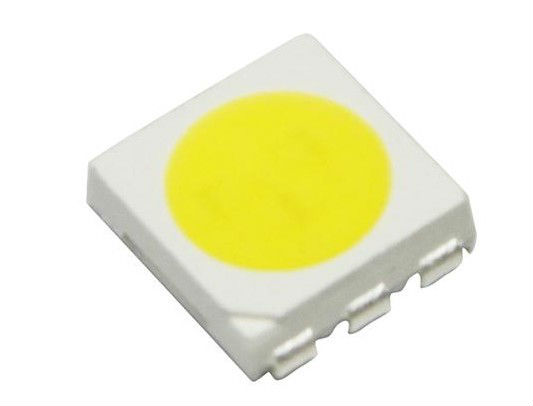

5.0x5.0mm & Dia 4.4mm |
|
APPLICATION |
Panel Lights -HIGH PERFORMANCE |
Street Lights, Down Lights, Flood Lights |
Street Lights, Flood Lights -EASY MANUAL SOLDER |
Down Lights ECONOMY |
