SINGLE DIGITS

· LED 0.3" SINGLE DIGIT

· LED 0.3" SINGLE DIGIT (MINI)

· LED 0.36" SINGLE DIGIT (MINI)

· LED 0.39” SINGLE DIGIT

· LED 0.5" SINGLE DIGIT

· LED 0.56" SINGLE DIGIT (MINI)

· LED 0.8" SINGLE DIGIT

· LED 1.0" SINGLE DIGIT

· LED 1.0" SINGLE DIGIT (NEW FONT)

· LED 1.5" SINGLE DIGIT

· LED 1.8" SINGLE DIGIT

· LED 2.0" SINGLE DIGIT

· LED 4.0" SINGLE DIGIT

LED 0.3" SINGLE DIGIT			(14pins) KLS33X/KLS34X Series Datasheet (10pins) KLS31X/KLS32X Series Datasheet
Face Length	19.0 MM				10 Pins		14 Pins
Face Width	10.6 MM				CA	CC	CA	CC
Height	5.4 MM			High Intensity red	KLS31I	KLS32I	KLS33I	KLS34I
Pin Spacing	2.5 MM			Superbrite red	KLS31S	KLS32S	KLS33S	KLS34S
Row Spacing	7.6 MM			Green	KLS31G	KLS32G	KLS33G	KLS34G
No.of pins	14/10 Pins			Yellow	KLS31Y	KLS32Y	KLS33Y	KLS34Y
Volts/Segment	2.0 Volts			Amber	KLS31A	KLS32A	KLS33A	KLS34A
Current	10.0 mA			Blue	KLS31B	KLS32B	KLS33B	KLS34B
CA = COMMON ANODE CC = COMMON CATHODE

LED 0.3 SINGLE DIGIT (MINI)			KLS3XX Series Datasheet
Face Length	12.7 MM				CA	CC
Face Width	7.6 MM				CA	CC
Height	6.1 MM			High Intensity red	KLS35I	KLS36I
Pin Spacing	2.5 MM			Superbrite red	KLS35S	KLS36S
Row Spacing	5.1 MM			Green	KLS35G	KLS36G
No.of pins	10 Pins			Yellow	KLS35Y	KLS36Y
Volts/Segment	2.0 Volts			Amber	KLS35A->	KLS36A
Current	10.0 mA			Blue	KLS35B->	KLS36B->
CA = COMMON ANODE CC = COMMON CATHODE

LED 0.36" SINGLE DIGIT (MINI)			KLS36XX Series Datasheet
Face Length	14.0 MM				CA	CC
Face Width	7.5 MM				CA	CC
Height	8.5 MM			High Intensity red	KLS361I	KLS4362I
Pin Spacing	2.5 MM			Superbrite red	KLS361S	KLS362S
Row Spacing	5.1 MM			Green	KLS361G	KLS362G
No.of pins	10.0 Pins			Yellow	KLS361Y	KLS362Y
Volts/Segment	2.0 Volts			Amber	KLS361A	KLS362A
Current	10.0 mA			Blue	KLS361B	KLS362B
CA = COMMON ANODE CC = COMMON CATHODE

LED 0.39" SINGLE DIGIT			KLS4XX Series Datasheet
Face Length	13 MM				CA	CC
Face Width	10 MM				CA	CC
Height	7.0 MM			High Intensity red	KLS41I	KLS42I
Pin Spacing	2.5 MM			Superbrite red	KLS41S	KLS42S
Row Spacing	7.6 MM			Green	KLS41G	KLS42G
No.of pins	10 Pins			Yellow	KLS41Y	KLS42Y
Volts/Segment	2.0 Volts			Amber	KLS41A	KLS42A
Current	10.0 mA			Blue	KLS41B	KLS42B
CA = COMMON ANODE CC = COMMON CATHODE

LED 0.39" SINGLE DIGIT			KLS4XX Series Datasheet
Face Length	13.0 MM				CA	CC
Face Width	10.0 MM				CA	CC
Height	7.0 MM			High Intensity red	KLS43I	KLS44I
Pin Spacing	2.54 MM			Superbrite red	KLS43S	KLS44S
Row Spacing	7.62 MM			Green	KLS43G	KLS44G
No.of pins	10.0 Pins			Yellow	KLS43Y	KLS44Y
Volts/Segment	2.0 Volts			Amber	KLS43A	KLS44A
Current	10.0 mA			Blue	KLS43B	KLS44B
CA = COMMON ANODE CC = COMMON CATHODE

LED 0.5" SINGLE DIGIT			KLS5XX Series Datasheet
Face Length	19.0 MM				CA	CC
Face Width	12.7 MM				CA	CC
Height	8.0 MM			High Intensity red	KLS51I	KLS52I
Pin Spacing	2.5 MM			Superbrite red	KLS51S	KLS52S
Row Spacing	15.2 MM			Green	KLS51G	KLS52G
No.of pins	10 Pins			Yellow	KLS51Y	KLS52Y
Volts/Segment	2.0 Volts			Amber	KLS51A	KLS52A
Current	10.0 mA			Blue	KLS51B	KLS52B
CA = COMMON ANODE CC = COMMON CATHODE

LED 0.56" SINGLE DIGIT (MINI)			KLS56XX Series Datasheet
Face Length	17.1 MM				CA	CC
Face Width	12.5 MM				CA	CC
Height	8.0 MM			High Intensity red	KLS563I	KLS564I
Pin Spacing	2.5 MM			Superbrite red	KLS563S	KLS564S
Row Spacing	12.05 MM			Green	KLS563G	KLS564G
No.of pins	10 Pins			Yellow	KLS563Y	KLS564Y
Volts/Segment	2.0 Volts			Amber	KLS563A	KLS564A
Current	10.0 mA			Blue	KLS63B	KLS64B
CA = COMMON ANODE CC = COMMON CATHODE

LED 0.8" SINGLE DIGIT			KLS8XX Series Datasheet
Face Length	28 MM				CA	CC
Face Width	20 MM				CA	CC
Height	8.3 MM			High Intensity red	KLS81I	KLS82I
Pin Spacing	2.5 MM			Superbrite red	KLS81S	KLS82S
Row Spacing	15.2 MM			Green	KLS81G	KLS82G
No.of pins	15 Pins			Yellow	KLS81Y	KLS82Y
Volts/Segment	2.0 Volts			Amber	KLS81A	KLS82A
Current	10.0 mA			Blue	KLS81B	KLS82B
CA = COMMON ANODE CC = COMMON CATHODE

LED 0.8" SINGLE DIGIT			KLS8XX Series Datasheet
Face Length	28 MM				CA	CC
Face Width	20 MM				CA	CC
Height	9.3 MM			High Intensity red	KLS83I	KLS84I
Pin Spacing	2.5 MM			Superbrite red	KLS83S	KLS84S
Row Spacing	15.2 MM			Green	KLS83G	KLS84G
No.of pins	15 Pins			Yellow	KLS83Y	KLS84Y
Volts/Segment	2.0 Volts			Amber	KLS83A	KLS84A
Current	10.0 mA			Blue	KLS83B	KLS84B
CA = COMMON ANODE CC = COMMON CATHODE

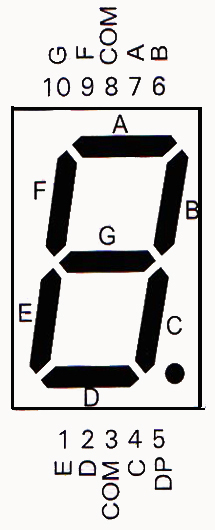

LED 1.0" SINGLE DIGIT			KLS10XX Series Datasheet
Face Length	33.0 MM				CA	CC
Face Width	22.4 MM				CA	CC
Height	8.0 MM			High Intensity red	KLS101I	KLS102I
Pin Spacing	2.5 MM			Superbrite red	KLS101S	KLS102S
Row Spacing	15.2 MM			Green	KLS101G	KLS102G
No.of pins	14 Pins			Yellow	KLS101Y	KLS102Y
Volts/Segment	3.9 Volts			Amber	KLS101A	KLS102A
Current	10.0 mA			Blue	KLS101B	KLS102B
CA = COMMON ANODE CC = COMMON CATHODE

LED 1.0" SINGLE DIGIT ( NEW FONT )			KLS10XX Series Datasheet
Face Length	34.0 MM				CA	CC
Face Width	29.0 MM				CA	CC
Height	10.5 MM			High Intensity red	KLS103I	KLS104I
Pin Spacing	2.54 MM			Superbrite red	KLS103S	KLS104S
Row Spacing	30.64 MM			Green	KLS103G	KLS104G
No.of pins	10.0 Pins			Yellow	KLS103Y	KLS104Y
Volts/Segment	2.0 Volts			Amber	KLS103A	KLS104A
Current	10.0 mA			Blue	KLS103B	KLS104B
CA = COMMON ANODE CC = COMMON CATHODE

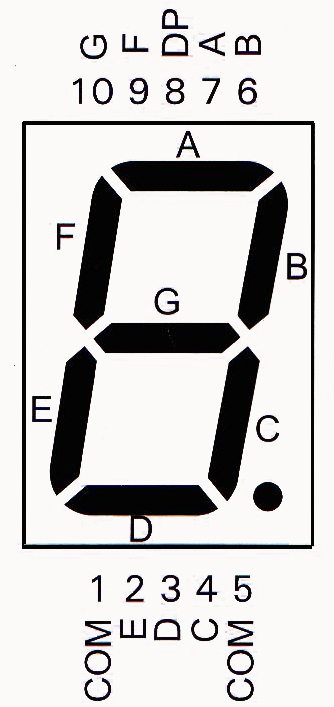

LED 1.5" SINGLE DIGIT			KLS15XX Series Datasheet
Face Length	44.0 MM				CA	CC
Face Width	30.5 MM				CA	CC
Height	8.0 MM			High Intensity red	KLS151I	KLS152I
Pin Spacing	2.54 MM			Superbrite red	KLS151S	KLS152S
Row Spacing	40.64 MM			Green	KLS151G	KLS152G
No.of pins	10.0 Pins			Yellow	KLS151Y	KLS152Y
Volts/Segment	2.0 Volts			Amber	KLS151A	KLS152A
Current	10.0 mA			Blue	KLS151B	KLS152B
CA = COMMON ANODE CC = COMMON CATHODE

LED 1.8" SINGLE DIGIT			KLS18XX Series Datasheet
Face Length	56.0 MM				CA	CC
Face Width	38.0 MM				CA	CC
Height	11.0 MM			High Intensity red	KLS181I	KLS182I
Pin Spacing	2.54 MM			Superbrite red	KLS181S	KLS182S
Row Spacing	48.2 MM			Green	KLS181G	KLS182G
No.of pins	10.0 Pins			Yellow	KLS181Y	KLS182Y
Volts/Segment	2.0 Volts			Amber	KLS181A	KLS182A
Current	10.0 mA			Blue	KLS181B	KLS182B
CA = COMMON ANODE CC = COMMON CATHODE

LED 2.0" SINGLE DIGIT			KLS20XX Series Datasheet
Face Length	70.0 MM				CA	CC
Face Width	48.0 MM				CA	CC
Height	12.0 MM			High Intensity red	KLS201I	KLS202I
Pin Spacing	2.5 MM			Superbrite red	KLS201S	KLS202S
Row Spacing	60.2 MM			Green	KLS201G	KLS202G
No.of pins	10 Pins			Yellow	KLS201Y	KLS202Y
Volts/Segments	7.6 Volts			Amber	KLS201A	KLS202A
Current	10 mA			Blue	KLS201B	KLS202B
CA = COMMON ANODE CC = COMMON CATHODE

LED 4.0" SINGLE DIGIT			KLS40XX Series Datasheet
Face Length	122.0 MM				CA	CC
Face Width	90.0 MM				CA	CC
Height	15.0 MM			High Intensity red	KLS401I	KLS402I
Pin Spacing	5.1 MM			Superbrite red	KLS401S	KLS402S
Row Spacing	107.0 MM			Green	KLS401G	KLS402G
No.of pins	10 Pins			Yellow	KLS401Y	KLS402Y
Volts/Segments	7.6 Volts			Amber	KLS401A	KLS402A
Current	20 mA			Blue	KLS401B	KLS402B
CA = COMMON ANODE CC = COMMON CATHODE
