46. PLCC LED 3.5 X 2.8 X
1.8 |
PLCC5X Series Datasheet
|
|
||||
|
Face Length |
3.2 MM |
|
||||
|
Face Width |
2.8 MM |
Superbrite red |
KLSL3228 SR |
|||
|
Height |
1.8 MM |
Ultra
Green |
KLSL3228 UG |
|||
|
Pin Spacing |
1.5 MM |
Super Yellow |
KLSL3228
SY |
|||
|
Row Spacing |
3.2 MM |
Super
Amber |
KLSL3228
SA |
|||
|
No.of pins |
2 Pins |
Ultra
Blue |
KLSL3228
UB |
|||
|
Viewing
Angle Degrees |
120 |
white |
KLSL3228
W |
|||
|
|
|
|
|
|||
|

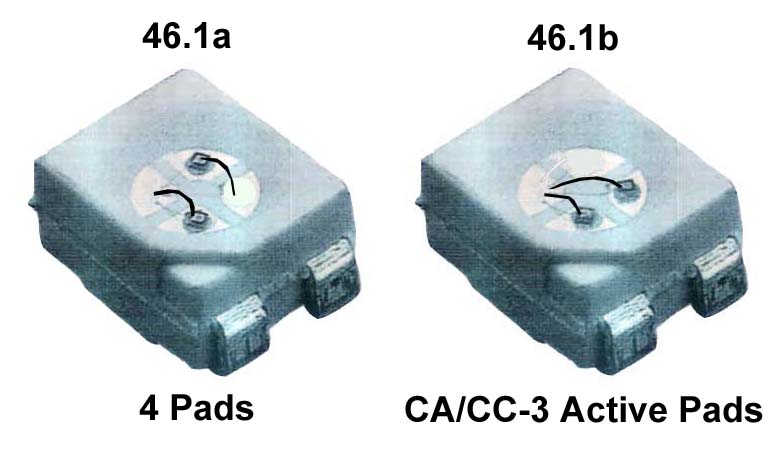

46.1(a&b) PLCC BI COLOR
3.5 X 2.8 X
1.8 |
PLCC5X Series Datasheet
|
|
||||
|
Face Length |
3.2 MM |
|
||||
|
Face Width |
2.8 MM |
S Red - S Green
|
KLSL3228 SR-SG |
|||
|
Height |
1.9 MM |
S Orange - S Green
|
KLSL3228
SO-SG |
|||
|
Pin Spacing |
2.2 MM |
Ultra Red - UltraGeen |
KLSL3228
UR-UG |
|||
|
Row Spacing |
3.2 MM |
S Orange - S Yellow
|
KLSL3228
SO-SY |
|||
|
No.of pins |
4 Pins |
|||||
|
Viewing
Angle Degrees |
120 |
|||||
|
|
|
|
|
|||
|
46.2 PLCC TRI COLOR
3.5 X 2.8 X
1.8 |
PLCC5X Series Datasheet
|
|
||||
|
Face Length |
3.2 MM |
|
||||
|
Face Width |
2.8 MM |
Ultra Red - Ultra
Green- Ultra Blue
|
KLSL3228 UR-UG-UB |
|||
|
Height |
1.9 MM |
|||||
|
Pin Spacing |
2.2 MM |
|||||
|
Row Spacing |
3.2 MM |
|||||
|
No.of pins |
4 Pins |
|||||
|
Viewing
Angle degrees |
120 |
|||||
|
|
|
|
|
|||
